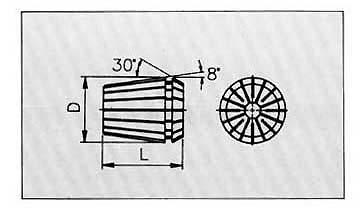

| ER spring
collets |
  |
| ER16 |
ER20 |
ER32 |
ER40 |
| Order No. |
Range |
Order No. |
Range |
Order No. |
Range |
Order No. |
Range |
| ER16-1 |
1-0.5 |
ER20-2 |
2-1 |
ER32-3 |
3-2 |
ER40-4 |
4-3 |
| ER16-2 |
2-1 |
ER20-3 |
3-2 |
ER32-4 |
4-3 |
ER40-5 |
5-4 |
| ER16-3 |
3-2 |
ER20-4 |
4-3 |
ER32-5 |
5-4 |
ER40-6 |
6-5 |
| ER16-4 |
4-3 |
ER20-5 |
5-4 |
ER32-6 |
6-5 |
ER40-7 |
7-6 |
| ER16-5 |
5-4 |
ER20-6 |
6-5 |
ER32-7 |
7-6 |
ER40-8 |
8-7 |
| ER16-6 |
6-5 |
ER20-7 |
7-6 |
ER32-8 |
8-7 |
ER40-9 |
9-8 |
| ER16-7 |
7-6 |
ER20-8 |
8-7 |
ER32-9 |
9-8 |
ER40-10 |
10-9 |
| ER16-8 |
8-7 |
ER20-9 |
9-8 |
ER32-10 |
10-9 |
ER40-11 |
11-10 |
| ER16-9 |
9-8 |
ER20-10 |
10-9 |
ER32-11 |
11-10 |
ER40-12 |
12-11 |
| ER16-10 |
10-9 |
ER20-11 |
11-10 |
ER32-12 |
12-11 |
ER40-13 |
13-12 |
|
|
ER20-12 |
12-11 |
ER32-13 |
13-12 |
ER40-14 |
14-13 |
|
|
ER20-13 |
13-12 |
ER32-14 |
14-13 |
ER40-15 |
15-14 |
|
|
|
|
ER32-15 |
15-14 |
ER40-16 |
16-15 |
|
|
|
|
ER32-16 |
16-15 |
ER40-17 |
17-16 |
|
|
|
|
ER32-17 |
17-16 |
ER40-18 |
18-17 |
|
|
|
|
ER32-18 |
18-17 |
ER40-19 |
19-18 |
|
|
|
|
ER32-19 |
19-18 |
ER40-20 |
20-19 |
|
|
|
|
ER32-20 |
20-19 |
ER40-21 |
21-20 |
|
|
|
|
|
|
ER40-22 |
22-21 |
|
|
|
|
|
|
ER40-23 |
23-22 |
|
|
|
|
|
|
ER40-24 |
24-23 |
|
|
|
|
|
|
ER40-25 |
25-24 |
|
|
|
|
|
|
ER40-26 |
26-25 |
