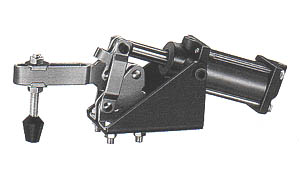

GH-12265-A
Similar to series 12132-A.
Assepts all 3/8 - 16 diameter spindle.
Bar open 95o
WEIGHT:2200g

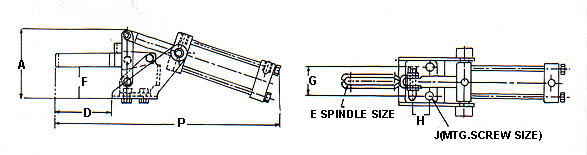

Model BAR MOVES PORT SIZE P A B D E F G H J
GH-10101-A 82o 1/8NPT 168.5 40.7 4.8 24 GH-FC-10138 17.5 23.8 15.9 3.2
GH-12050-A 105o 1/8NPT 185 55.7 6.3 35 GH-FC-56212 27 27 12.7 5.2
GH-12130-A 92o 1/8NPT 236.5 75.4 10.3 68 GH-FC-56212 33.9 32 19 7.1
GH-12132-A 92o 1/8NPT 260 75.3 10.3 88 GH-FC-56212 34.2 32 19 7.1
GH-12265-A 86o 1/8NPT 392 93.7 9.5 88.2 GH-FC-38312 44.2 45.2 31.8 8.3
GH-12275-A 86o 1/8NPT 302 93.7 9.5 88.2 GH-FC-38312 44.2 45.2 31.8 8.3
GH-10247-A 100o 1/8NPT 407 110 18.9 114.8 GH-FC-11300 55.3 45.2 31.8 8.3
GH-10249-A 100o 1/8NPT 407 110 18.9 114.8 GH-FC-12300 55.3 45.2 31.8 8.3
GH-20820-A 90o 1/8NPT 165 195 16.5 60 GH-FC-56212 70 25 16 7
