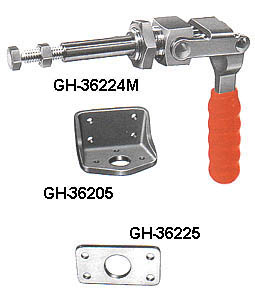

GH-36202M
GH-36204M
GH-36224M

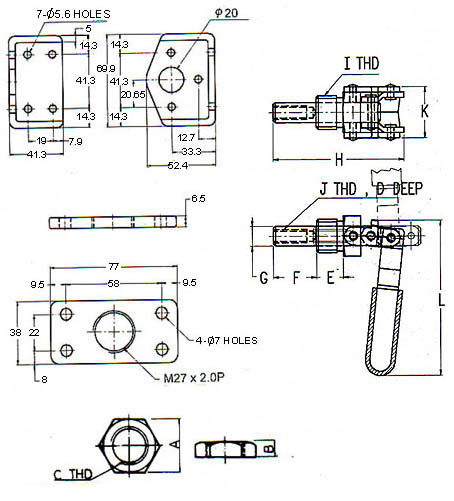

UNIT : mm
  • Plunger Clamp With Threaded Collar for Mounting Through Panels or Plates
  • Plunger Locks in Extended or Retracted Position
    *Supplied with red vinyl hand grip.
    *Supplied with a jam nut on the work side optional base is available upon order : GH-36205 for GH-36204
    GH-36225 for GH-36224
Model Holding
Capacity		 Weight Plunger Travel Supplied
With		 A B C I D E F G H K L
GH-36202M 91kg 113g 19 GH-SA-064010 23 6.4 M16 P=1.5 15.8 12.7 20.6 phi.gif (193 bytes)9.4 63 M6 P=1 30.2
GH-36204M 136kg 270g 38 GH-SA-085012 30 6.4 M20 P=1.5 25.4 15.9 39.7 phi.gif (193 bytes)11 115 M8 P=1.25 30.2
GH-36224M 318kg 690g 66.8 GH-SA-105015 41 6.4 M27 P=2.0 31.75 22 69 phi.gif (193 bytes)15.8 169.5 M10 P=1.5 39.7
GH-36204M-SS STAINLESS STEEL
